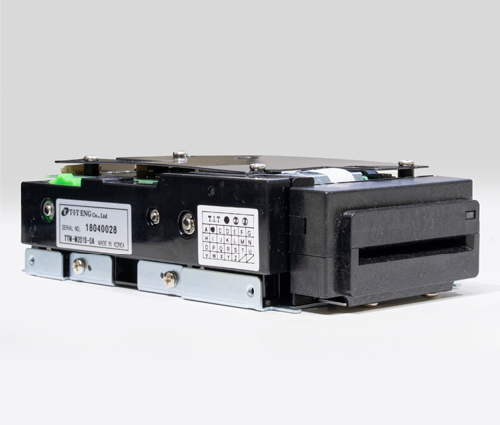

Motor Driven Card Reader/Writer

TTM Series

Compact and reliable Card reader
Mag.Stripe & IC Contact Smart card R/W
Various security option: Anti-skimming, Secure head, Full shutter

leaflet

driver

features

- Magnetic ISO 1/2/3 track read
- IC Contact ISO 7816 read/write
- Optional contactless IC card read/write
- Data Encryption with triple DES and single DES
- Full shutter preventing dust and any foreign objects (optional)
- Rear card capture
- RS232C or USB interface
- EM V 4.3 Level 1 certified
- Optional anti-skimming

options

- Loyalty card
- Gift card
- Membership card
- Visitor badge
- VTM
- Pre-paid card
- Transportation card

specifications

Item	Description
Magnetic stripe	ISO 7810, 7811
Magnetic stripe	Track 1, 2, 3 Hi-co/Lo-co read capable
Contact smart card	ISO 7816
	T=0, T=1 protocol
	EMV Level 1, EMV Level 2(Payment Offline), Optional SAM soket
Contactless smart card (optional)	ISO 14443 type A & B, ISO 15693, Mifare and Desfire.
Card speed	210mm/s+-10% capability (at flat card)
Interface	RS232C or USB
Power	+24Vdc +-10%, 2A
Life time	Mag. Head : 500,000 passes, Smart card contact : 300,000 contacts
Environment conditions	Operating Temperature : 5 ~ 50℃, Operating Humidity : 20 ~ 80 RH
Environment conditions	Storage Temperature : -20 ~ 70℃, Storage Humidity : 20 ~ 80 RH
Dimension	86mm (W) × 43mm (H) × 160mm/166mm (L) (166mm : Anti-Skimming)
Weight	Less than 400g
