TDR Series

Affordable manual card reader & writer
Mag.Stripe & IC Contact smart card R/W
High security : Shutter, Locking function
Meet environmental needs - Various bezel option

leaflet

driver

features

- Magnetic ISO 1/2/3 track read
- IC Contact ISO 7816 read/write
- Optional contactless IC card read/write
- Data Encryption with triple DES and single DES
- Full shutter preventing dust and any foreign objects.
- Locking function to prevent card full-out during transaction
- RS232C or USB interface
- EMV 4.3 Level 1 certified

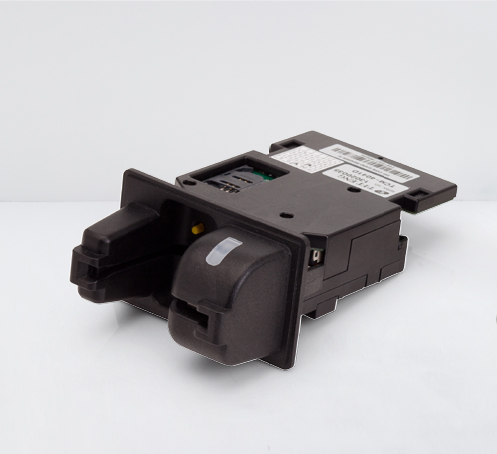

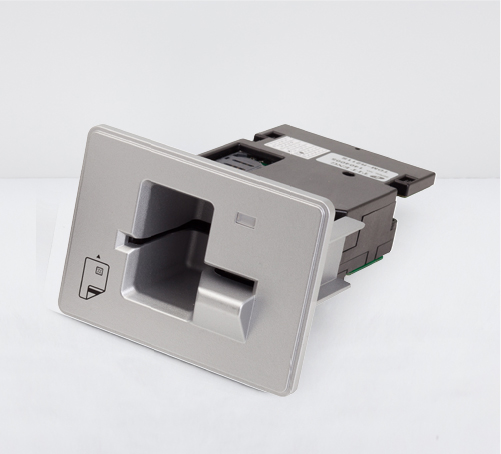

- 2 type of bezel options - Flat and protrudent

options

- ATM/CD
- banking terminal
- Payment terminal

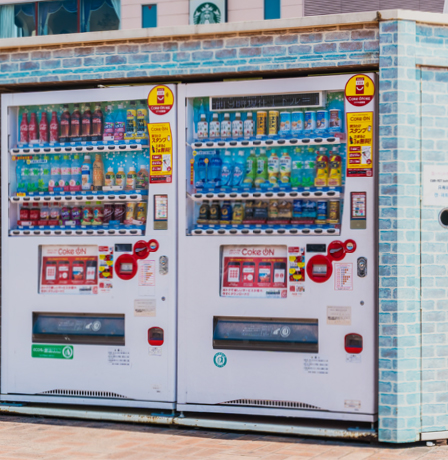

- Vending machine
- Gaming kiosk

specifications

Item	Description
Magnetic stripe	ISO7811(Track 1,2,3), JIS II
Magnetic stripe	Coercivity : HiCo / LoCo
Contact smart card	ISO 7816
	T=0, T=1 protocol
	EMV Level 1, EMV Level 2(Payment Offline)
Contactless smart card (optional)	ISO 14443 A/B, Mifare, Desfire, NFC, Felica (PC/SC or Serial)
Card speed	100~1000mm/s capability (at flat card)
Interface	RS232C or USB
Power	+12Vdc +-10%, 2A
Life time	Mag. Head : 500,000 passes, Smart card contact : 1,000,000 contacts
Environment conditions	Operating Temperature : 0 ~ 50℃, Operating Humidity : 5 ~ 90 RH
Environment conditions	Storage Temperature : -20 ~ 70℃, Storage Humidity : 5 ~ 90 RH
Dimension	82.5mm (W) × 50mm (H) × 1 39.4mm (L) (153.4 mm (L) : including RS232C connector)
Weight	Less than 200g
