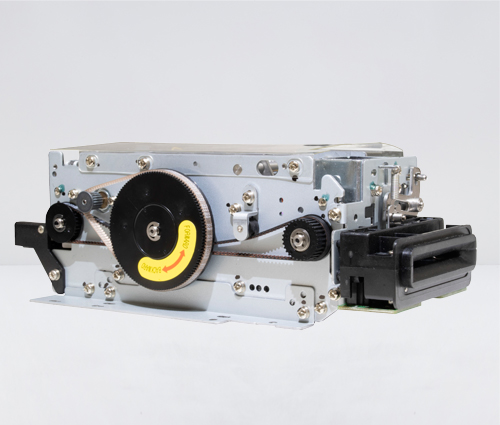

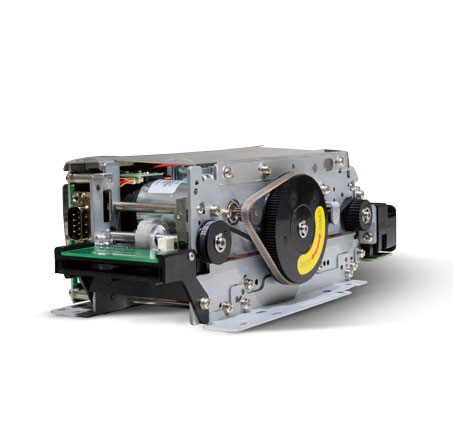

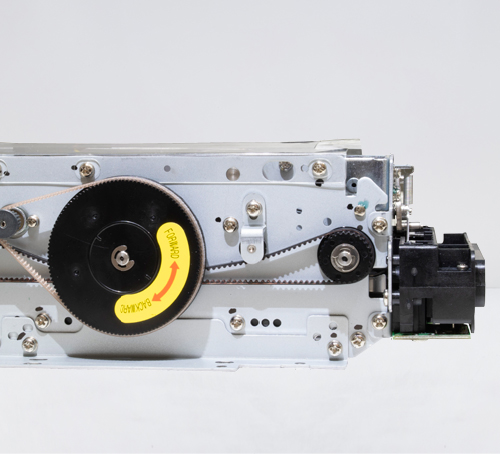

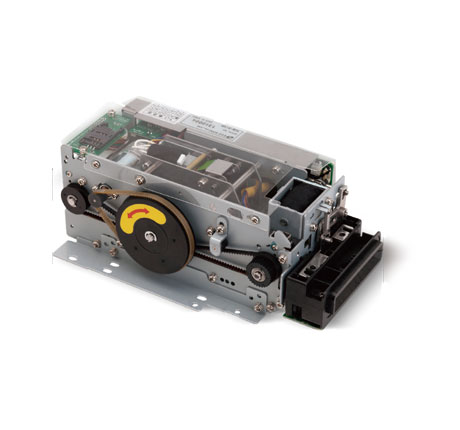

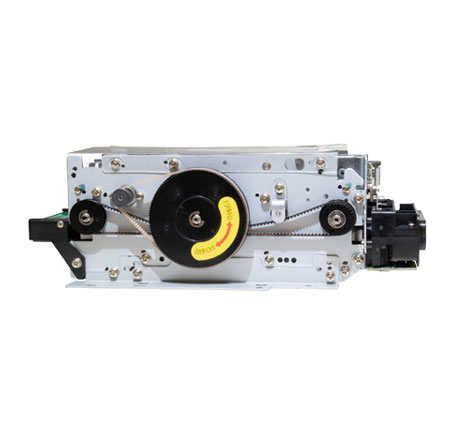

Motor Driven Card Reader/Writer
TCM SERIES
- Mag.Stripe and IC Contact Smart Card Reader & Writer for Banking
- Field Proven Technology and Rich Experience with Banks
Motor Driven Card Reader/Writer
| Item | Description |
|---|---|
| Card Format | CR-80 |
| MS | ISO 7810, 7811 (Track 1, Track2, Track 3) |
| Read & Write Capable | |
| HiCo/LoCo Capable F2F Reading Method | |
| Head Life : 4,000,000 pass | |
| IC Contact | ISO 7816 |
| EMV Level 1, EMV Level 2(Payment Offline), Optional SAM soket | |
| Contact Landing Type - 8 pin contact | |
| Contactless Smart card(optional) | ISO 14443 type A&B, ISO 15693, Mifare |
| *Other types upon request | |
| Feed Speed | 450mm/sec ± 10% |
| MS Head Track Width | Read Track Width : 1.0mm |
| Write Track Width : 3.0mm | |
| Shutter | Default : Sensor Only |
| Option : MS Head(Pre Head) | |
| Interface | RS-232C |
| Power | DC 24V/2A ± 10%, 2A |
| +5Vdc ± 10% | |
| Ripple : | |
| Less than 200m Vp-p (24V DC) | |
| Less than 100m Vp-p (5V DC) | |
| Weight | 1.66KG |
| Dimension | 212mm(L) × 108(W) × 76mm(H) |
| Environment Condition | Operating Temperature : 5 ~ 40°C |
| Operating Humidity : 20 ~ 80 RH | |
| Storage Temperature : -20 ~ 70°C | |
| Storage Humidity : 20 ~ 80 RH |
