ATM & KIOSK MODULE (transportation)

  • td-3x00
  • td-3x00
  • td-3x00

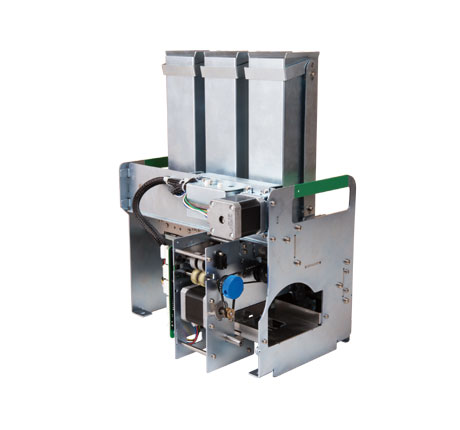

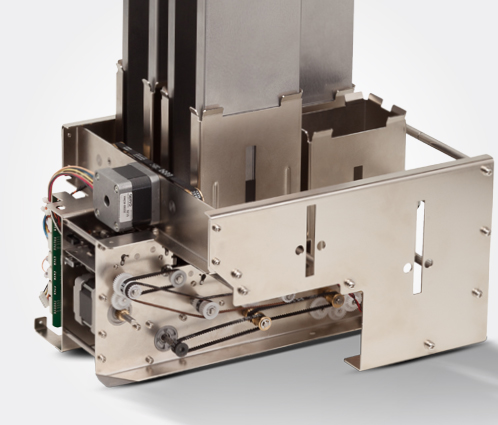

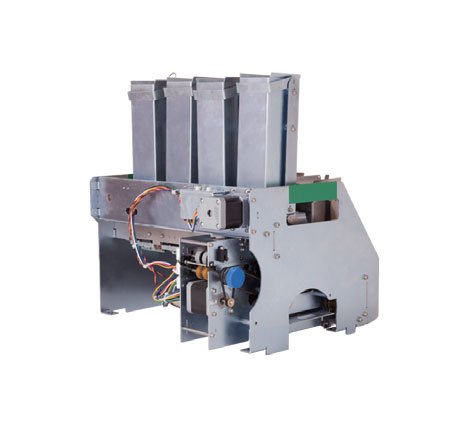

Card Dispenser(Multi Tray)

TD-3X00

  • High dispensing speed
  • Support various card types
  • Adopting various-quantity cassette type
  • Hopper capacity : Default 150pcs
    (Option : 300pcs, 500pcs)
  • Multi Tray : 2/3/4/6/8 tray
td-3x00 td-3x00 td-3x00

features

  • td-3x00
    • Very Compact & Robust Structure
    • Intelligent Card Dispenser : 150pcs (0.76mm)
  • td-3x00
    • High Speed Card Issuing : 0.6 ~ 1.0 Sec/Card
    • Card Thickness : 0.2 mm ~ 1.0 mm
    • RS-232C & USB Interface

specifications

Item Description Remark
Card Thickness 0.2mm ~ 1.0mm
Card Size ISO 7810 / CR-80 / CR-70
Supportive Card Material PVC, PET
Card Hopper Capacity 150, 300, 500 pcs Based on 0.76mm
Contactless smart cards ISO14443 type A/B, Mifare, Desfire ISO 18092 (NFC) Optional
Card Capture function Retract uncollected cards. Retain an error card Optional
Remaining Card Check Low card level warning, Empty card hopper error
Interface RS-232C, USB 2.0
Dimension TD-2200 : 162(W) × 325(L) × 286(H)mm
TD-2400 : 242(W) × 325(L) × 286(H)mm
TD-2800 : 550(W) × 325(L) × 286(H)mm
150 cards: 286mm(H)
300cards: 400mm(H)
500cards: 552mm(H)
TD-3200 : 212(W) × 210(L) × 227(H)mm
TD-3300 : 289(W) × 210(L) × 227(H)mm
TD-3400 : 212(W) × 322(L) × 227(H)mm
TD-3800 : 366(W) × 322(L) × 227(H)mm
150 cards: 296mm(H)
300cards: 410mm(H)
500cards: 562mm(H)
Feeding Speed 0.6 ~ 1.0 Sec/Card Without RF Card Encoding
Reject bin capacity 20 cards
Power DC 24V ± 10%, 5A Adaptor (optional)
Environment
Conditions
* Temperature & Humidity
Operating : 0 ~ 40℃, 20 ~ 80% RH
In Storage : -10 ~ 50℃, 20 ~ 80% RHn
show specification
