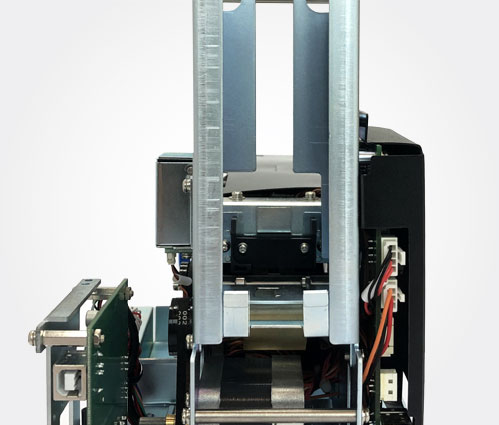

Card Reader with Dispenser
| item | detail | |
|---|---|---|
| Card Thickness | 0.2mm ~ 1.2mm | |
| Card Size | CR-80 | |
| Supportive Card Material | PVC, PET, PAPER(Optional) | |
| Card Hopper Capacity | 150 cards / 300 cards / 500 cards 0.76mm | |
| Encoding | Mag. Stripe | ISO 7811 (TRACK1,TRACK2,TRACK3 |
| Read & Write Capable | ||
| Hico/Loco CapableF2F Reading Method | ||
| Life : 500,000 passes | ||
| Contact IC | ISO/IEC 7816, EMV Level 1 / EMV Level 2(Ver4.3) Optional | |
| Contact Landing Type | ||
| SAM1, 2(option) | ||
| Life : 300,000 contact | ||
| Contactless RF | ISO 14443 A/B, Mifare, DESFire, ISO 15693, NFC, Felica | |
| Card Capture Function | Retract uncollected cards / Retain the error card | |
| Remaining Card Check | Low card level warning / Empty card hopper error | |
| Interface | RS232 and USB 2.0 (Full Speed) | |
| Dimension | 150 cards | 150.3mm x 398.88mm x 225.08mm (W x D x H) |
| 300 cards | 150.3mm x 398.88mm x 334.39mm (W x D x H) | |
| 500 cards | 150.3mm x 398.88mm x 486.39mm (W x D x H) | |
| Power | With Load : DC 24V – 5.0 A | |
| Environment Condition | 5℃ ~ 40℃, 0% ~ 96% RH (without condensation) | |
