Complex Module

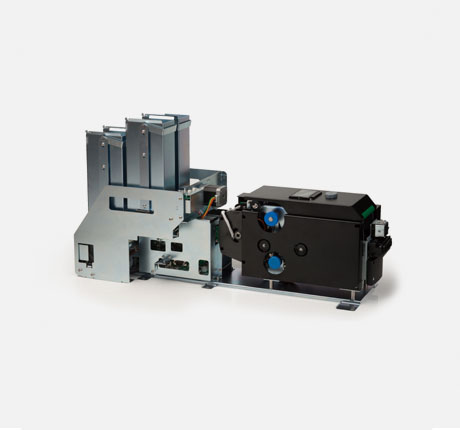

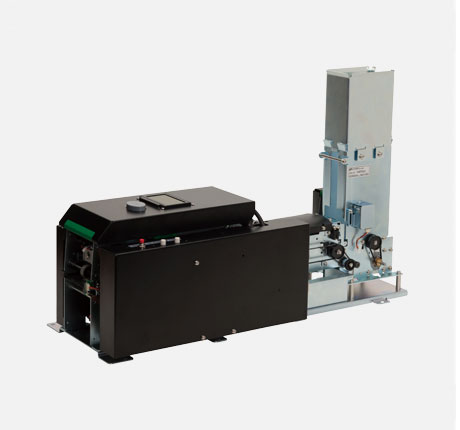

KIOSK CARD PRINTER

TPK SERIES

  • TPK-30xx / TPK-40xx
  • Card Personalization module for instant card issuance at self-serviced kiosk
  • Proven quality of printing and encoding high capacity and 1, 2, 4 and 8 card hoppers.
  • Varied capacities of card hopper (150, 300, 500 cards hopper)
  • Optional Encoding : Magnetic Stripe, Contact and card encoding, Contactless smart card encoding
    * Other functions available upon request

features

options

application

specifications

Item Detail
Printer Direct thermal printing
Single & dual
300dpi printing resolution
Full-color and monochrome printing
Media Plastic card Card type: PVC and composite PVC cards
Card thickness : 0.76 mm, other thickness upon request
Card format : ISO CR80 -ISO 7810 (53.98mm x 85.60mm)
Ribbon YMCKO ribbon : 200 prints/roll or 250 prints/roll
YMCKOK ribbon : 170 prints/roll
1/2ymcKO ribbons : 400 prints/roll
Mono ribbon (black, silver, gold, white) : 1000 prints/roll
Printing speed Full color printing Single side : more than 150 cards/hour
Dual side : more than 100 cards/hour
Mono printing 700 cards/hour
Card reject Ability to retrieve the defective cards and uncollected cards
(default reject card bin)
Optional encoding Magnetic stripe encoding ISO7811 (track 1, 2 and 3) Coercivity : Hi-Co & Lo-Co
Contact smart card encoding ISO 7816, EMV Level 1 and PBOC 3.0 (PS/SC, serial)
Contactless smart card encoding ISO 14443 type A & B, ISO 15693, Mifare
* Other type upon request
Card hopper capacity Each hopper available with 3 capacities 150 cards, 300 cards and 500 cards - 0.76mm
* other capacity upon request
Interface USB 2.0
Network (optional) : Built in 10/100 Ethernet
Driver & software Operating system Windows XP, Windows Vista / Window 7 & 8, Windows 2003 / 2008 Server ☞ Microsoft Windows Hardware Quality Labs (WHQL)
Software Package DLL, PCL and test program
Temperature Operating 5 ~ 40℃
Storage -10 ~ 60℃
Power TPK-3000 Input : AC 100 ~ 240V, 50 ~ 60Hz
Output : DC 24V, 3.75A
TPK-4200 Input : AC 100 ~ 240V, 50 ~ 60Hz
Output : DC 24V, 3.75A
TPK-4400 Input : AC 100 ~ 240V, 50 ~6 0Hz
Output : DC 24V, 5A
TPK-4800 Input : AC 100 ~ 240V, 50 ~ 60Hz
Output : DC 24V, 7A
Dimension Shutter 599.3(L) x 248.9 (H) x 208.2(W) / 150 pcs
599.3(L) x 358.2 (H) x 208.2(W) / 300 pcs
599.3(L) x 510.2 (H) x 208.2(W) / 500 pcs
Bezel 593.7(L) x 358.2(H) x 208.2(W) / 300pcs
* Dimension is subject to change depending on the options
Warranty 1-year limited warranty.
